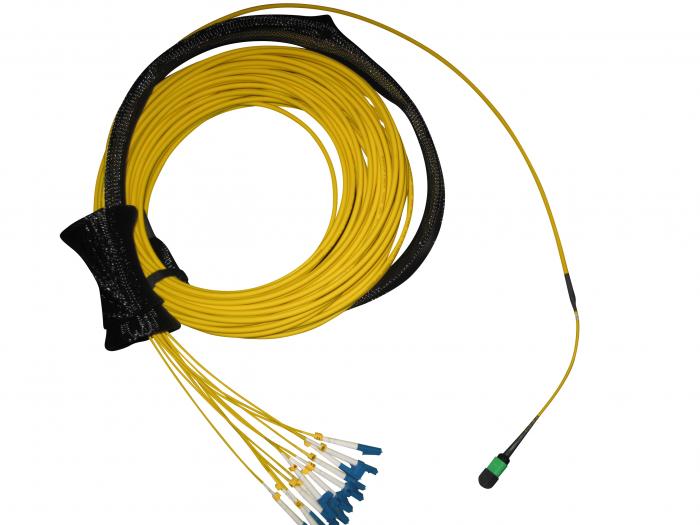

Armored MPO Breakout Fiber Patch Cord

Product Description

We offer armored MPO/MTP 12 core breakout fiber patch cord with MPO connector on one end and 12 LC,SC,ST,FC 2.0mm connector (Any combination) on other end. These MPO/MTP armored breakout patch cord are OFNP Plenum rated, they have 3.5mm stainless steel tube inside out jacket. These steel Armored MPO/MTP breakout Fiber Optic cable are specifically designed for heavy-duty indoor/outdoor, tactical or military applications. Its rugged shell with stainless steel tube, Kevlar & water block yarn, they are 100 times stronger than regular Fiber Optic Cable, yet highly flexible. Available fiber: Corning ClearCurve 9/125 (OS2,Yellow), Corning InfiniCor 62.5/125(OM1,Orange), Corning ClearCurve 50/125 (OM2,Yellow),Corning ClearCurve 50/125(OM3,OM4,Aqua) with OFNP Plenum rated jacket

The MTP/MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions. Simply install the MTP/MPO breakout cable within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-Out.


   Armored 12 core MPO breakout cable.

   Stainless Steel Tube

   Kevlar & Water Block Yarn

   Connectors: MTP, MPO, FC, LC, ST, SC (Any combination)

   Fiber: Corning 9/125 (OS2), 62.5/125(OM1), 50/125(OM2,OM3,OM4)

   Multimode or Single-Mode Communication

   OFNP Plenum Rated

   Out Jacket OD:5.5mm

   Lengths: Custom lengths on request
