SM 9/125 MPO/MTP Fiber Cable Ribbon


Product Description

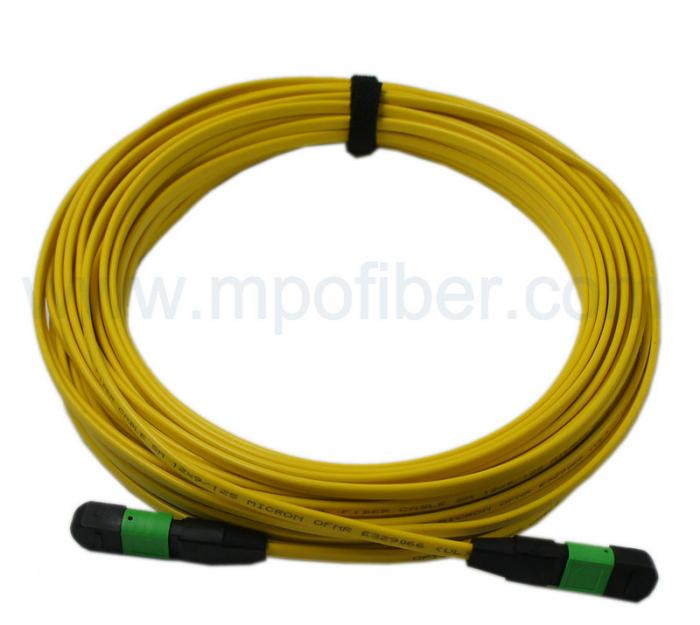

Single Mode 9/125µm MPO/MTP-MPO/MTP Fiber Patch Cord

We offer single mode SM 9/125µm MPO/MTP fiber optic cables, they are 12/24 fiber cable pre-terminated with MPO/MTP connectors at both ends. These MPO/MTP fiber cables are OFNP Plenum rated, OFNR Riser rated or LSZH jacket. These cables can be 12/24 fiber 4.5mm ribbon, 3mm round or bare ribbon cable.

The single mode MPO/MTP fiber cable has yellow color jacket for cable recognition.



Features:

MPO/MTP single mode 9/125µm fiber cables assembly

Mode: Single Mode 9/125µm

Fiber Count: 12/24 Fiber

Connector: MPO/MTP-MPO/MTP

Cable Type: Round 3.0mm Aqua Jacket

Jacket Material: Riser(OFNR),Plenum(OFNP) or LSZH.

Gender: Male-Male, Female-Female, Male-Female

Length: Customer Length on request

The MTP/MPO cabling system is ideally suited for a high density environment that demands space saving cable density and innovative cable management solutions. Simply install the MTP/MPO fiber cables within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-Out.

Except single mode MPO/MPO fiber cable, we also provide all other fiber mode of MPO/MTP fiber cables.

Available fiber: Corning ClearCurve 9/125 (OS2,Yellow), Corning InfiniCor 62.5/125(OM1,Orange), Corning ClearCurve 50/125 (OM2,Yellow),Corning ClearCurve 50/125(OM3,OM4,Aqua).
